A four digital remote control lamp

Product features:

1. Super heterodyne receiving circuit, the first the superheterodyne receiver circuit and radio signal receiving very stable, remote control distance and sensitivity from climate and environment etc. factor influence, this is other similar super regenerative receiver circuit products can not be done.

2 digital coding - the use of imported digital IC chip coding processing, will not produce mutual control phenomenon, and the ability to resist external interference;

3 easy installation - receiver installed in the lamp holder and the lamp light, press the launch button, you can achieve remote control of the lamp;

4 partition wall remote control - can be a wireless remote control of the partition wall (in the room can be remote control of the living room lighting);

5 launchers the first use of ordinary 23A battery, easy to buy, easy to install, long life.

The product has the call function, the power cut and then call switch is in the closed state, avoid waste.

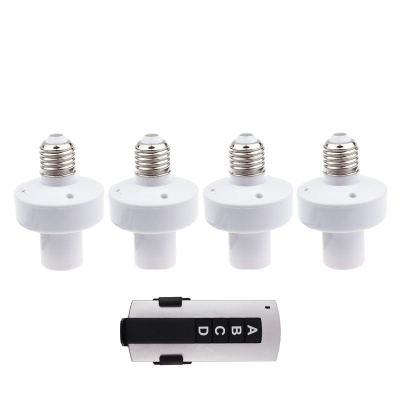

[product name]: a remote control four lamp (screw type)

[introduction]: the receiver was installed between the lamp and lighting, light to press the launch button can be realized the remote control to electric lights. Products strictly comply with the product quality inspection institute Q/CPDZ01-2000 standard production.

[details]:

First, the use of products:

At night the helper - to families with children bring convenience, such as children at night need to urinate or give a child feeding, eliminating the inconvenience of the lights in the dark.

2. Young and old fun - for the night of the children and the old lamp switch is convenient, for young people like lying in bed reading books or TV programs like the rest to turn off the lights also brings convenience.

3. The four seasons, winter lying in the warm bedding, switch lamp cold; summer mosquito net placed reached out lamp switch for fear of attracting mosquitoes, use "remote control lamp to avoid these troubles.

Two, instructions for use:

1 the receiving controller is arranged between the lamp holder and the lamp;

2 open the launcher, the 23A number of ordinary batteries 1 (standard products) according to the polarity requirements into the battery box. Light press the launch button, you can realize the remote control of the electric light.

Three, technical indicators:

1 launch without sound, no direction, can be separated from the number of wall remote control, open remote control distance of more than 15 meters;

2 receive sensitive and reliable, control the number of times up to one hundred thousand times;

3 imported IC coding, there are millions of different coding, not to use the same product with neighbors when the mutual control phenomenon;

4 this product uses the 220V AC power supply, can use for a long time. Because the bulb and the receiver are connected together, the high temperature generated when the bulb emits light affects the electronic components in the receiver, so the lamp power is less than 40W;

5 the product has the call function, after power failure, the switch is in the closed state, avoid waste.

6 remote controller with hook, easy to carry, easy to use.

7 working voltage: 220V / 50Hz

8 maximum load power: light bulbs 200W below the following energy-saving lamp 100W

9 remote control distance: 15m

10 emission frequency: 315MHz

11 color: white

Four, other instructions:

1 remote control can "wall wall", between the two products are not mutually controlled? A remote controller is composed of two parts, the receiver and the transmitter, the remote control can be realized only when the transmitter code and the receiver are the same. Each of the remote control products has a specific encoding, different product codes, such as a key to open a lock. As long as the product code is not different, it will not cause the phenomenon of mutual control.

2 the use of the fault phenomenon and exclusion:

Transmitter problem: according to the switch, the indicator light is not bright - the transmitter does not install the battery or the battery polarity installation is correct

Receiver problem:

The A. indicator does not light, check whether the receiver wall switch open or contact with the lamp holder is in place;

B. press transmitter, hear a "click" sound receiver, and lamp can not be controlled and may be lighting and the receiver of the contact is not in place.
